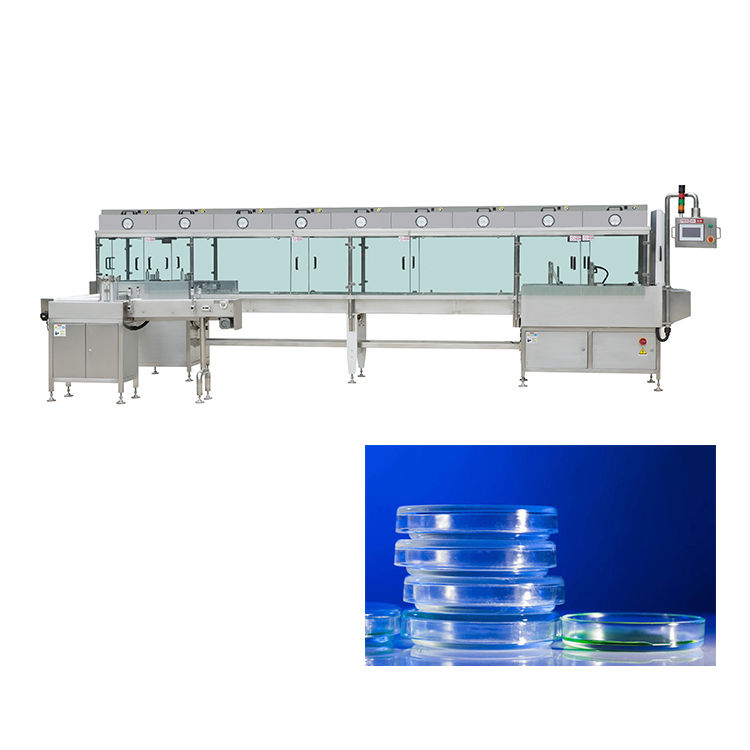

Automatic Petri Dish Filling Machine 6000BPH for Microbiology Labs

Detalles del producto

Lugar de origen: Jiangsu, China

Nombre de la marca: PERWIN

Condiciones de pago y envío

Cantidad de orden mínima: 4

Precio: $88,000

Obtenga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          automatic petri dish filling machine, petri dish filler for microbiology labs, 6000BPH petri dish filling machine


Maquinaria:	1200BPH	Voltaje:	Acción alterna trifásica 380V
Dimensión:	750035001400 mm	Peso:	2000 kg
Rango de llenado:	4 ~ 70ml	Precisión de relleno:	el ±1~3%
Velocidad de llenado:	6000BPH	Método de llenado:	3 conjuntos de bomba peristáltica
Tiempo de enfriamiento:	3.5 ~ 5min	Estaca de platos:	5 a 10 platos por pila
Fuerza:	380V 50Hz, alrededor de 9 kW	Aire comprimido:	0.4~0.8MPa
Temperatura de la aguja de llenado:	40 ~ 45 ° C	Velocidad de producción:	≧ 3200pcs/min
Componentes centrales:	motor, recipiente a presión, bomba, plc, engranaje, rodamiento, caja de cambios, motor, HMI

Maquinaria:	1200BPH
Voltaje:	Acción alterna trifásica 380V
Dimensión:	750035001400 mm
Peso:	2000 kg
Rango de llenado:	4 ~ 70ml
Precisión de relleno:	el ±1~3%
Velocidad de llenado:	6000BPH
Método de llenado:	3 conjuntos de bomba peristáltica
Tiempo de enfriamiento:	3.5 ~ 5min
Estaca de platos:	5 a 10 platos por pila
Fuerza:	380V 50Hz, alrededor de 9 kW
Aire comprimido:	0.4~0.8MPa
Temperatura de la aguja de llenado:	40 ~ 45 ° C
Velocidad de producción:	≧ 3200pcs/min
Componentes centrales:	motor, recipiente a presión, bomba, plc, engranaje, rodamiento, caja de cambios, motor, HMI

Descripción

Automatic Petri Dish Filling Machine 6000BPH for Microbiology Labs

55mm 60ml 90mm 150mm and Contact RODAC Plates Petri Dish Filling Machine

Product Overview

PERWIN's new generation of aseptic petri dish filling line can be designed with different functional modules according to the customer's capacity requirements, plant conditions and different industries where the culture medium is applied.

Key Features

Compact design
Intelligent operation
Fully automated process
HEPA protected filling area
Easy to operate
English HMI interface

Technical Specifications

Item	Description
Product specifications	90mm mono and double area plates and 140mm and 55mm plates
Filling volume	4ml~70ml
Filling accuracy	±1~3%
Cooling time	3.5~5min, customer adjustable
Production speed	≥3200pcs/min (for 90mm dish with 5min cooling time)
Filling method	6 sets of peristaltic pumps, each with independent stepping system
Sheep blood adding system	Includes peristaltic pump, blood bag storage rack, and exclusive FFU area
Changeover parts	Equipped for three other specifications (4-6 lanes)
Filling needle insulation	Prevents liquid cooling and solidification (40-45°C)
FFU	11 sets covering entire process, including sheep blood station
Dish stack	5-10 dishes per stack (customer adjustable)
Power	380V 50Hz, ~9 KW
Control method	PLC intelligent linkage with touch screen control
Compressed air	0.4~0.8Mpa

Product Configuration

Successful Projects

Product Attributes

Machinery capacity

1200BPH

Application

Microbiology labs in hospital

Packaging type

Petri dish

Packaging material

Plastic

Automatic grade

Automatic

Driven type

Electric

Voltage

AC Three-Phase 380V

Dimension (l*w*h)

7500*3500*1400mm

Warranty

1 Year

Filling material

Agar culture media, sheep blood

Filling accuracy

±1~3%

Core components

Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine, HMI

Filling range

4~70ml

Filling speed

6000bph

Weight

2000 KG

Frequently Asked Questions

Product Advantages

Compared to Chinese counterparts: Stronger R&D team; complete after-sales service system; stronger customization ability.

Compared with European and American counterparts: Shorter delivery time; Lower prices for products with the same configuration and output; Higher automation and intelligence at the same price; Lower after-sale maintenance costs.

After-Sales Service

Free spare parts for the first year (except for intentional damage). Online support for machine installation, operation and maintenance. Engineer overseas on-site service. Maintenance reminder service every 3 months. 24/7 after-sales online service. Complete documentation for IQ, OQ, PQ, DQ etc.

Communication Advantage

English operation interface and documentation. English communication for all services. After-sales service available across time zones with 24-hour support.

Successful Cases

Long-term cooperation with Roche. Based on successful initial cooperation, one customer purchased 12 production lines in a follow-up order.
